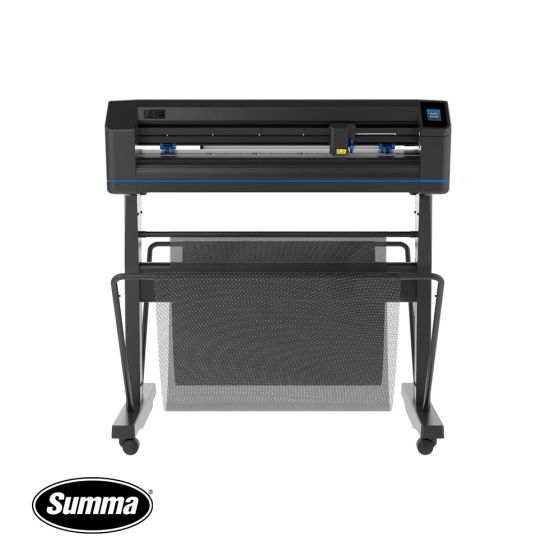

Summa S One™ D60 Dragknife Cutter

OPOS Alignment for Smarter Production

Take the guesswork out of contour cutting with the Optical Positioning System (OPOS). Powered by advanced OPOS X sensor technology, it automatically reads between 4 and 128 registration marks across a wide variety of materials - ensuring pinpoint accuracy every time.

With OPOS barcode functionality, you can run multiple jobs in a fully automated workflow, switching seamlessly between tasks without manual intervention. The result? Faster turnaround, reduced errors, and a more efficient production process.

Ergonomic Touchscreen Control

Navigate with ease using the intuitive menu system and ergonomically designed touchscreen interface. Responsive and tactile, it puts full control at your fingertips - displaying key information clearly and accessibly, so you can work faster and more efficiently with minimal effort.

Unmatched Die-Cutting Precision

Take your cutting capabilities further with Summa’s exclusive FlexCut technology. This intelligent feature creates precise perforated cuts, keeping materials stable as they move through the cutter. The result? Clean, consistent output with maximum efficiency and ease.

Legendary Tracking for Ultimate Precision

Experience next-level accuracy with Summa’s exclusive MicroSprocket™ drive drum, paired with powerful servo motors. As media advances, it’s carefully controlled and conditioned to ensure flawless tracking - delivering pinpoint precision on jobs up to 8 metres long.

Flexible Connectivity Options

Stay connected your way with Ethernet, USB, and WiFi compatibility. Easily link multiple computers to a single unit across your network, streamlining collaboration and boosting productivity. Prefer a direct setup? Use a crossover cable for fast, reliable communication and data transfer.

WiFi availability may vary by region.

OPOS Xtra for Intricate Detail Cutting

Capture every detail with OPOS Xtra technology. The advanced OPOS sensor reads registration marks at high speed and automatically compensates for bleed, ensuring clean, accurate results.

Perfect for small sticker jobs, OPOS Xtra excels at detecting subtle curves and fine details - delivering sharper cuts and superior precision where it matters most.

State-of-the-Art Drive System

Power through every job with the S One’s advanced servo motor drive system. Engineered for speed and precision, it maintains smooth, accurate cutting - even on the most complex curves. Enjoy high-performance output and faster turnaround without compromising on quality.

Versatile Drag Knife Cutting Head

The Summa S One™ Series combines power, precision, and value with a high-speed drag knife cutting head built for everyday performance. Durable and dependable, it’s designed to handle demanding workloads with ease.

Quickly switch between standard blades, heavy-duty blades for thicker materials, plotting pens, or pouncing tools - giving you the flexibility to tackle a wide range of applications. With up to 600 grams of cutting force and user-friendly, intelligent features, the S One™ delivers performance that rivals even top-tier cutters.

Endless Applications, Limitless Creativity

The Summa S One™ Series empowers you to tackle an expansive range of applications across multiple markets. From intricate cuts on laminated vinyl to flock, flex materials, rigid sandblast foils, and even the most challenging substrates, the S One™ handles it all with speed, precision, and ease.

Unleash your creativity and take on every project confidently—your do-it-all Summa roll cutter is ready to bring your ideas to life.

Model

S1 D60

S1 D160

Cutting Type

Drag knife with TurboCut and Tangential Emulation Modes

Tool compatibility

Blade, Pen

Cutting width

60 cm (23 inch)

158 cm (62 inch)

All S One models cut at speeds up to 1131 mm/sec (44 ips) diagonal

Axial acceleration

Up to 2 G

Alignment Type

• OPOS X - OPOS Xtra

• Barcode job recognition

• Up to 2 x 64 marks on the X-line

• Y-line compensation

Maximum acceleration

Up to 3G diagonal

Within ± 0.1 mm (± 0.004 in.) on plots up to 8 m long (40 ft.); on rolls up to 760 mm wide

Within ± 0.1 mm (± 0.004 in.) on plots up to 4 m long; on rolls over 760 mm wide

Cutting force

0-600 grams of down-force, in 5-gram increments

Note: FX has 0-400 grams of down-force, in 5-gram increments

Replot memory

10 MB Buffer Size

Display languages

English; French; German; Dutch; Italian; Spanish; Polish; Portuguese

Connectivity

USB, Ethernet, WiFi*

(*region dependent. S One D60 available without WiFi module: S1D60-L)

Power requirements

100-240 VAC, 50/60 Hz

Dimensions

97 (W) x 40.6 (D) x 30.4 (H) cm (38.2 (W) x 16 (D) x 12 (H) in.)

196 (W) x 70.4 (D) x 111.2 (H) cm (77.2 (W) x 27.7 (D) x 43.8 (H) in.)

Weight

18 kg (39.7 lbs)

48 kg (105.9 lbs)

Operating temperature

15˚ to 35˚C (59˚ to 95˚F)

Standard accessories

Summa GoSign software, Summa CutterControl & MacSign plug-ins, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades.

Optional accessories

S1 D60

• Stand only
• Basket only
• Stand and basket
• Tray One Sheet Feeder
