ORALITE 5400 Reflective Vinyl

ORALITE® 5400 Commercial Grade are weatherproof, self-adhesive retroreflective films with a high level of flexibility and an excellent corrosion and solvent resistance. The retroreflective system of the ORALITE® 5400 Commercial Grade consists of catadioptric glass beads which are embedded in a transparent layer of plastic material (classification RA1, design A, former Type I). The smooth surface has a high scratch resistance and a good printability. The minimum reflection data corresponds to the EN 12899-1. The daylight colours correspond to the international norms for reflective materials of this class.

50 metres on a roll.

  • Special cast PVC film
  • PE-coated silicone paper, 145 g/m²
  • Solvent polyacrylate, permanent adhesive
In stock
As low as £7.70
Victory Design Payment Options
100% of 100
Victory Design - Branch Location

Central UK Location

Daily deliveries throughout
the UK and Europe


  • Reflective film (RA1, A 90 micron)
  • 6 colours
  • 4 years durability

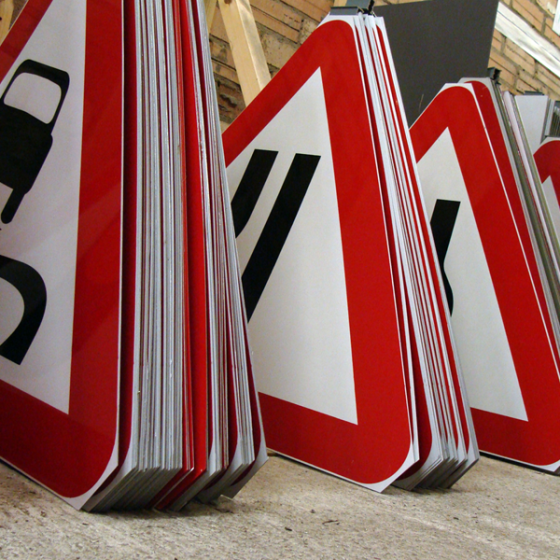

  • For reflective direction, information and advertising signs
  • Good adaptability to uneven surfaces
  • High resistance to corrosion and solvents
  • Solvent polyacrylate, permanent adhesive
Thickness* (without protective paper) 130 micron
Temperature resistance adhered to aluminium, -50°C to +82°C
Adhesive power* (FINAT-TM1 after 24h, stainless steel) 15 N/25mm (film tear)
Shelf life** 2 years
Application temperature > +10°C
Service life by specialist application under vertical outdoor exposure 4 years***

*average   **in original packaging, at 20°C and 50% relative humidity   ***standard Central European climate


Oralite 5400 comes as standard at 1220mm

The rolls of Oralite 5400 are 50m long.

The durability of Oralite 5400 is up to 4 years.

Yes, Oralite 5400 does not need edge sealing, so it can be cut and still be used just as effectively.

Due to the new REMA mandates, Oralite 5400 is not Chapter 8 compliant, for either highway or emergency service.

Oralite 5400 reflective can be stored for up to 2 years prior to use.

Yes, we can slit 5400 down to 610mm, or we can supply stripe rolls to a chosen number of mm.

Oralite 5400 comes in white, blue, red, orange, green and yellow.

According to REMA guidelines, Oralite 5400 is an RA1 reflective product.
