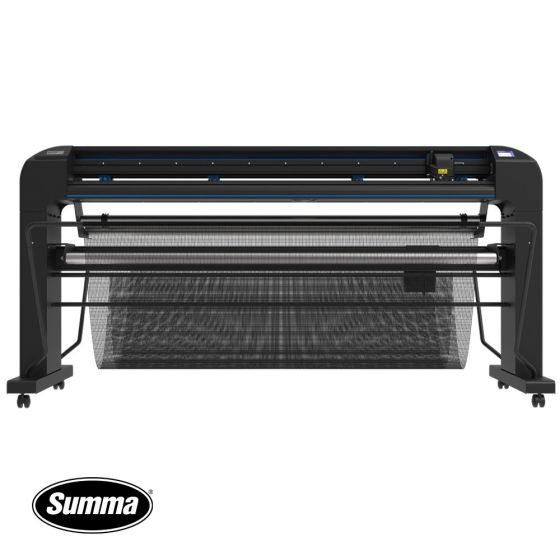

Summa S Class 3 S160 T-Series Cutter - 1600mm

Summa S Class 3 combines exceptional precision, versatility, and long-term durability in one professional-grade cutter. Engineered with premium materials, this Summa plotter built to handle heavy, continuous use while delivering consistent, high-quality results every day.

From vinyl cutting and digital die-cutting to precise plotting on a wide range of materials, the Summa S Class 3 is a true all-in-one solution for creative professionals. When working with costly foils or high-value vinyl prints, you can rely on its outstanding accuracy and rock-solid performance to protect your materials and your results.

The Summa S Class S160 T-Series Cutter is the largest roll cutter in the S Class 3 Series. It is designed for professional users who demand maximum flexibility across a wide range of applications, along with the most advanced technology and features available. With the Summa cutter S Class 3, you can rely on industry-leading cutting performance and exceptional precision to deliver cutting excellence on every job.

Connectivity options
Summa GoSign software
Tangential or Drag knife technology
Indicator light
Advanced through cut functionality
Camera or Sensor recognition of registration marks
Barcode functionality for automation
Twin X functionality
Roll-up system

Details

Summa S Class 3T True Tangential Cutting Technology

The Summa S Class 3T Series features advanced tangential cutting heads equipped with a unique motorized knife, delivering exceptional accuracy and razor-sharp precision—even on the finest details. Powered by True Tangential Cutting technology, these cutters effortlessly handle demanding materials such as heavy sandblast films, paint masks, and reflective media.

Smart Object Sorting and Panelling

The Summa cutter Smart Object Sorting feature automatically selects the most efficient starting point for every cut, ensuring optimal performance and consistent accuracy. Combined with the exclusive Smart Panelling function, cutting precision is enhanced while post-processing is made faster and easier. For example, when panelling is set to 40 cm, all objects within that range are cut in a single pass, streamlining workflow and maximizing productivity.

Summa S Class 3 T Series Tangential Knife Technology

The Summa S Class 3 T Series combines S Class power and precision with a state-of-the-art True Tangential cutting head. Coupled with an astonishing array of innovations and built-in capabilities, this cutter offers you the best in roll cutting.

Model	S3 160
Dimensions	225 x 69 x 111 cm
Media Width	17 to 168 cm
Max. Working Width	158 cm x 50 m 'Oversized' mode allows a wider cutting area: +/7 cm
Alignment Type	OPOS X - OPOS Xtra OPOS - CAM (factory upgrade) Barcode job recognition	Up to 2 x 64 marks on the X-line Y-Line compensation
Tracking Performance	12 m max. within guaranteed specifications for media less than 760 mm	4 m max. within guaranteed specifications for media larger than 760 mm
Media Thickness	0.05 mm to 0.25 mm / Up to 0.8 mm with sandblast drag knife / Up to 1.2 mm with sandblast tangential knife
Accuracy	0.2% of move or 0.25 mm, whichever is greater
Speed	Up to 1440 mm/s diagonal
Acceleration	Up to 4.2 G diagonal
Knife Pressure	Drag Knife: Up to 400 grams / Tangential Knife: Up to 1000 grams
Extra Pen or Creaser Pressure	Up to 1000 grams
Other Features	FlexCut (cutting through)
Connectivity	Ethernet, USB, WIFI
Power Requirements	100-120 / 220-240 VAC, 50/60 Hz,85 VA maximum
Included Software	Summa GoSign Software, Summa Cutter Control / Plug-in: Illustrator, CorelDraw, MacSign
Cutting Technology	Drag knife / Tangential knife
Dual Head	Creasing tool / Fibre pen
*In ‘Oversized’ mode the tracking performance is no longer guaranteed.
