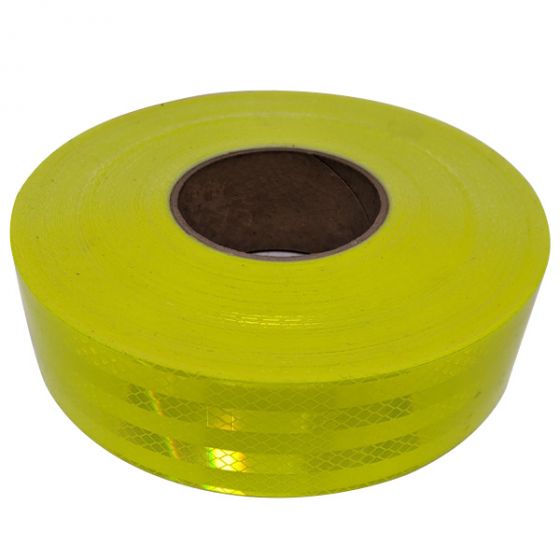

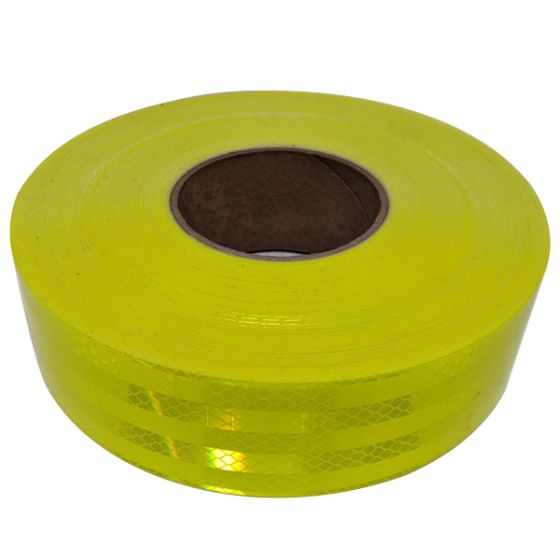

3M Diamond Grade Vehicle Conspicuity Flu Yellow Green Side Stripe 51mm x 45.7m
3M™ Diamond Grade™ Vehicle Conspicuity side stripe is a fluorescent yellow green reflective product for use on the side of rigid sided vehicles such as emergency vehicles and non-regulated trucks and trailers. This microprismatic retroreflective conspicuity tape is perfect for marking emergency exits, sides and rear of vehicles for enhanced visibility on the roads.
51mm x 45.7m on a roll.
Fluorescent yellow green.
Apply to painted or unpainted flat metal without rivets – must be vertically mounted.
Central UK Location
Daily deliveries throughout
the UK and Europe
• Offers enhanced visibility and detection for vehicles on the roads
• Microprismatic lens retroreflectors formed in transparent resin
• Reflective both in daytime and at night-time for enhanced visibility
• High/wide entrance angularity
• Non-metallic construction
• Pressure-sensitive adhesive backing
• Fluorescent yellow-green
• Pre-sealed edges
• Meets the requirements of CAN/ULC S515-13
• For use on emergency vehicles and non-regulated trucks and trailers
3M™ Diamond Grade™ Conspicuity Markings 983. This microprismatic retroreflective conspicuity tape is perfect for marking emergency exits, sides and rear of vehicles for enhanced visibility on the roads. These markings feature prismatic lens technology formed in a transparent, synthetic resin, engineered to provide good visibility even at wide entrance angles. Backed with a pressure-sensitive adhesive.
3M™ Diamond Grade™ Conspicuity Markings help ensure superior brightness and visibility on the road. Strong, rigid, and corrosion-resistant, these markings are backed with a high-performance adhesive that sticks securely to trucks, trailers, and emergency vehicles. Includes a clear polymer liner for easy application.
Apply to painted or unpainted flat metal without rivets - must be vertically mounted
3m ECE104 Fluo Yellow – Green tape is 51mm wide.
Each roll of 3m ECE104 Fluo Yellow – Green tape is 45.7m long.
3m has rated the ECE104 tape with an 8-year durability (vertical exposure).
In line with the new REMA guidelines, 3m ECE104 tape is R3B compliant for Chapter 8.
3m rate the ECE104 tape with 2-year shelf life after manufacture and before use.
We can supply Red, White, Yellow and Yellow – Green ECE104 tape.
Yes, for HGV each colour is for different locations on the vehicle. White on the front, red or yellow on the rear, and yellow/white for the side. The Fluo Yellow-Green is more typically used in accordance with Chapter 8 as a side strip and for escort vehicles.
Rigid ECE104 tape is designed for large HGVs and box vans – and is not for curtain sided vehicles.
Any new HGV registered that’s over 7.5 tonnes or trailers over 3.5 tonnes must use conspicuity markings.
